RapidRidge Dry Fix with Ventilation – 5m Pack
Original price was: $110.00.$99.95Current price is: $99.95.
RapidRidge with Ventilation incorporates all the benefiĀts of a Dry Fixed roof, with the added bonus of ventilation. RapidRidge with Ventilation facilitates a natural cooling passive system across the whole roof to reduce heat transfer through the roof and ceiling into the living space.
Description
This pack contains:
- 1 x Ridge Flashing Roll (5m)
- 7 x Batten Holders
- 15 Clips
- 5 x Eaves Vents
RapidRidge with Ventilation incorporates all the benefiĀts of a Dry Fixed roof, with the added bonus of ventilation. RapidRidge with Ventilation facilitates a natural cooling passive system across the whole roof to reduce heat transfer through the roof and ceiling into the living space.
RapidRidge with Ventilation is an easy and cost effective way to reduce temperature and moisture build up in the roof space. This is important not just for the structure of the roof but also for the health of the people living inside.
HOW DOES IT WORK?

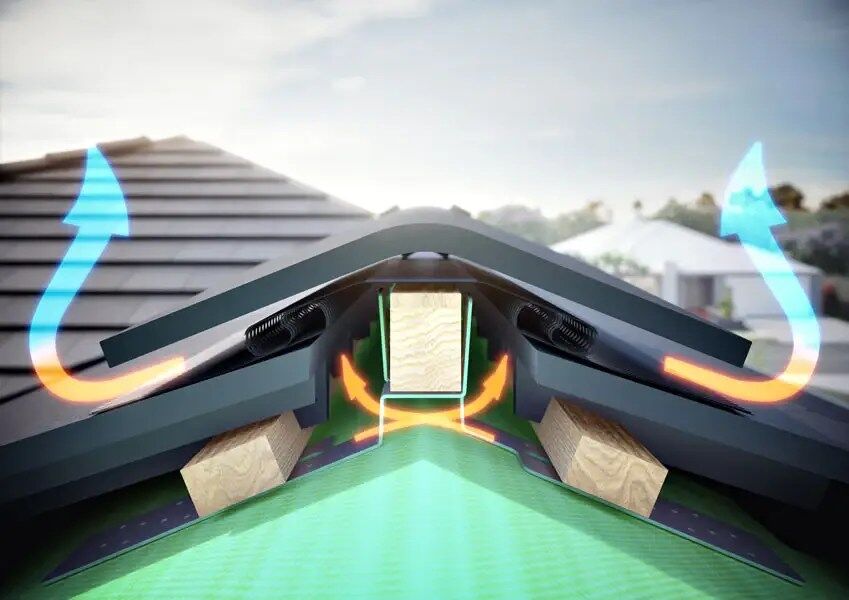

RapidRidge with Ventilation consists of 4 components that work together to securely hold the ridge caps, while creating an open ridge at the highest point of the roof. The eaves vent sits on the eaves board under the last course of tiles and allows air to continually circulate up under the tiles. A UV stabilised ridge flĀashing is placed over the ridge, and adhered to the tiles with butyl strips. Mechanical Āfixings (clips) are used to securely attach the ridge tiles to the roof. This eliminates the need to use mortar for bonding. The ridge tile is fixed securely with the clips to the ridge batten, which is held in place by the batten holder.
COMPONENTS

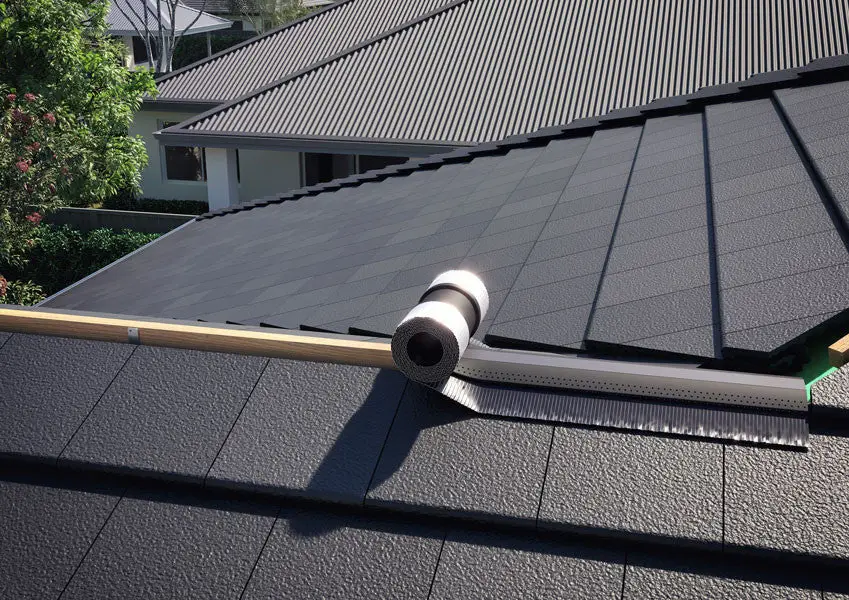

RIDGE FLASHING
- Advanced double labyrinth technology allows air to be released while keeping the roof ridge weather tight
- Creates a watertight ridge
- Up to 50% stretch for ease of installation
- Butyl strips for adhesion
- CSIRO Tested ā Complies with AS4046.9 āDynamic Weather Resistanceā
- Roll Size: 280mm x 5m. Roll Weight: 2.2kg.
EAVES VENT
- Sits on the eaves board under the last course of tiles
- Allows air to continually circulate
BATTEN HOLDER
- Designed to withstand wind uplift load of 200N/m
- Bent and split by hand to suit various heights and rafter alignment

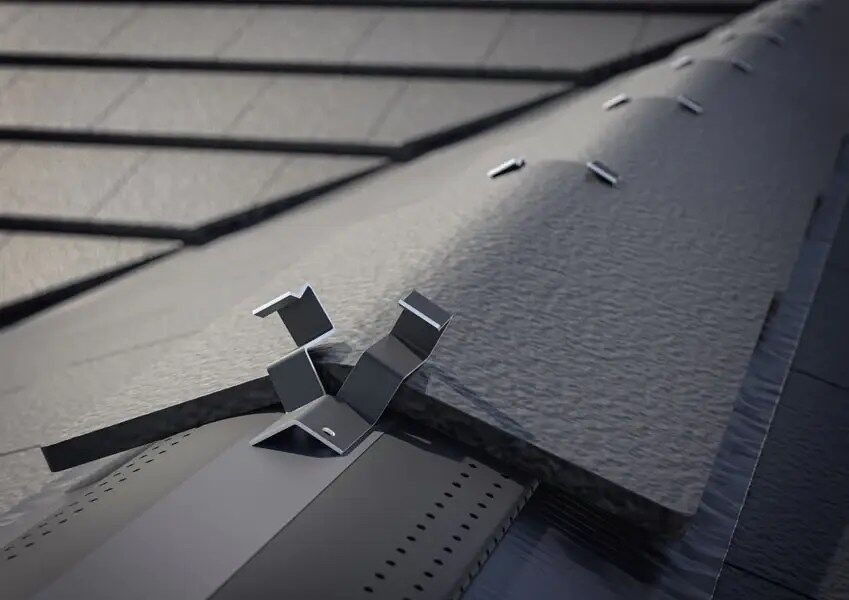

CLIPS
- Designed especially for the Australian market
- Fits most common roof tile profiles
- Holds ridge caps securely in place
OPTIONAL
- At the gable ends we recommend filling gaps with Flexim roof putty. Click here.
DOWNLOADS
- RapidRidge with Ventilation Flyer
- RapidRidge with Ventilation Installation Instructions
Additional information
| color | Black, Terracotta |
|---|---|
| CLIPS: TILE BRAND | Boral, Monier |
| Clips: TILE TYPE | Clay, Concrete |
